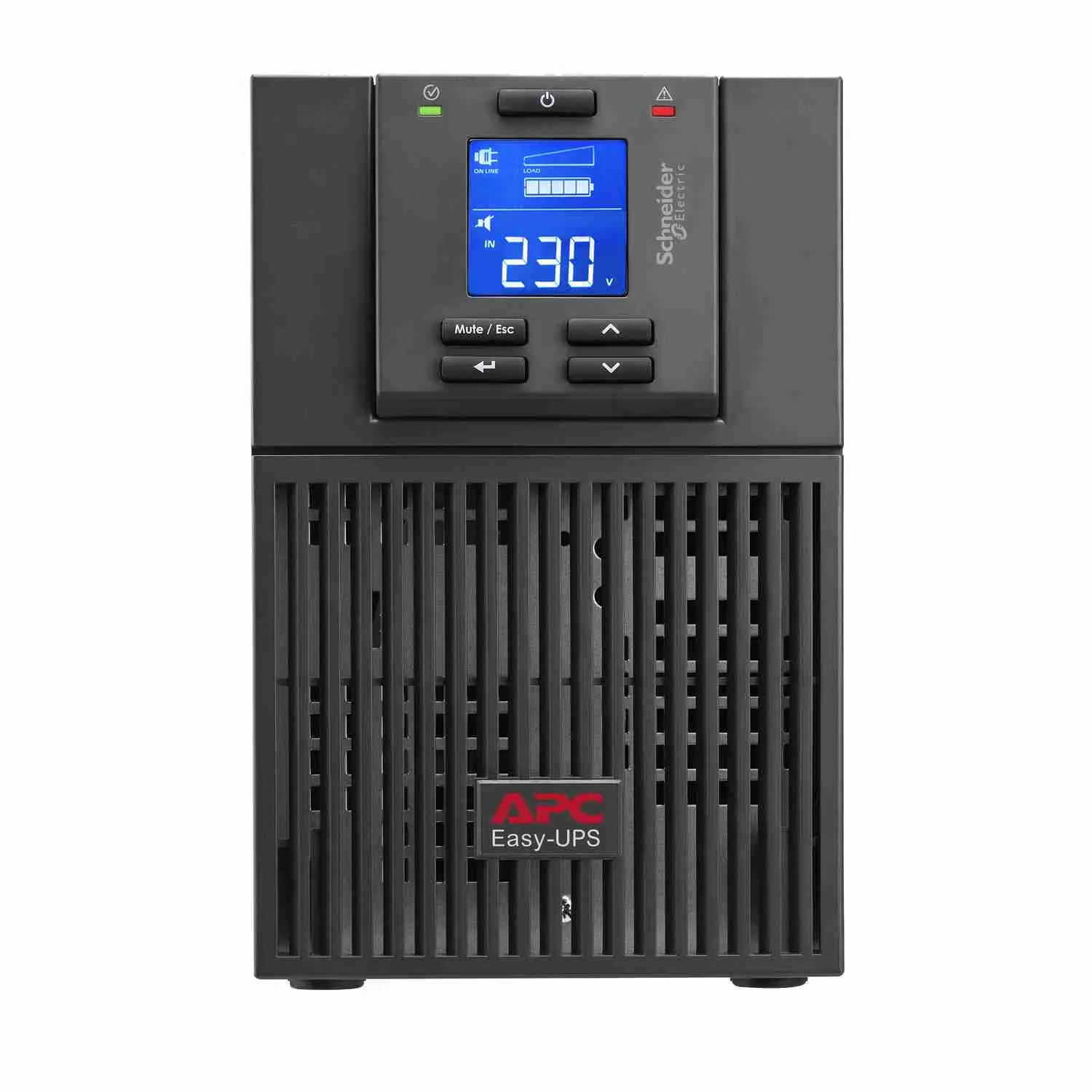

APC Easy UPS SRV1Ki(1000VA) Line Online (SRV1Ki)

Guarantee maximum power purity and continuous uptime for your critical equipment with the APC Easy UPS Online 1000VA. Utilizing true double-conversion online technology, this UPS provides flawless, conditioned sine wave power, isolating connected devices from all power problems including blackouts, surges, sags, and frequency variations. It is the ideal solution for protecting sensitive servers, network infrastructure, and telecom systems in unstable power environments.

Product Features

True Double-Conversion Online Technology

This topology continuously converts AC power to DC and back to clean, stable AC power, providing zero transfer time to battery and complete isolation from raw utility power, ensuring the highest level of protection for sensitive electronics.

Pure Sine Wave Output

The unit always delivers a clean, utility-grade sine wave output, ensuring full compatibility with sensitive server power supplies and active PFC loads, preventing system crashes and data corruption.

High-Performance Surge Protection

With a robust 600 Joule surge energy rating, this UPS offers superior protection against damaging voltage spikes and transients, safeguarding your valuable equipment.

Comprehensive Communication and Management

Equipped with both USB and RS-232 interface ports, the UPS allows for advanced monitoring, configuration, and graceful system shutdowns using power management software.

Multifunction LCD Control Console

The intuitive LCD interface provides detailed, real-time information on system status, load, battery charge, and alarms, enabling proactive power management.

Cold-Start Capability

This feature allows the UPS to be started from battery power even when AC utility power is unavailable, providing essential flexibility during installation and maintenance.

High Efficiency Operation

With an efficiency of up to 88% at full load, the UPS minimizes power loss and reduces operating costs, especially important for always-on applications.

Product Specifications

• Power Capacity: 1000VA / 800W
• Topology: Double Conversion Online
• Input Voltage: 230V (Configurable 220V, 230V, 240V)
• Output Voltage: 230V (Pure Sine Wave)
• Output Connections: 3 x IEC 60320 C13
• Input Connection: IEC 60320 C14
• Battery Type: Lead-Acid, 24V
• Typical Recharge Time: 4 hours
• Runtime at Full Load: 3 minutes 49 seconds
• Surge Protection: 600 Joules
• Communications: USB, RS-232
• Efficiency: 88% at full load
• Dimensions (H x W x D): 22.3 cm x 14.5 cm x 28.8 cm
• Weight: 9.3 kg
• Operating Temperature: 0°C to 40°C
• Certifications: CE, UKCA, EAC, TISI
• Warranty: 2 Years
