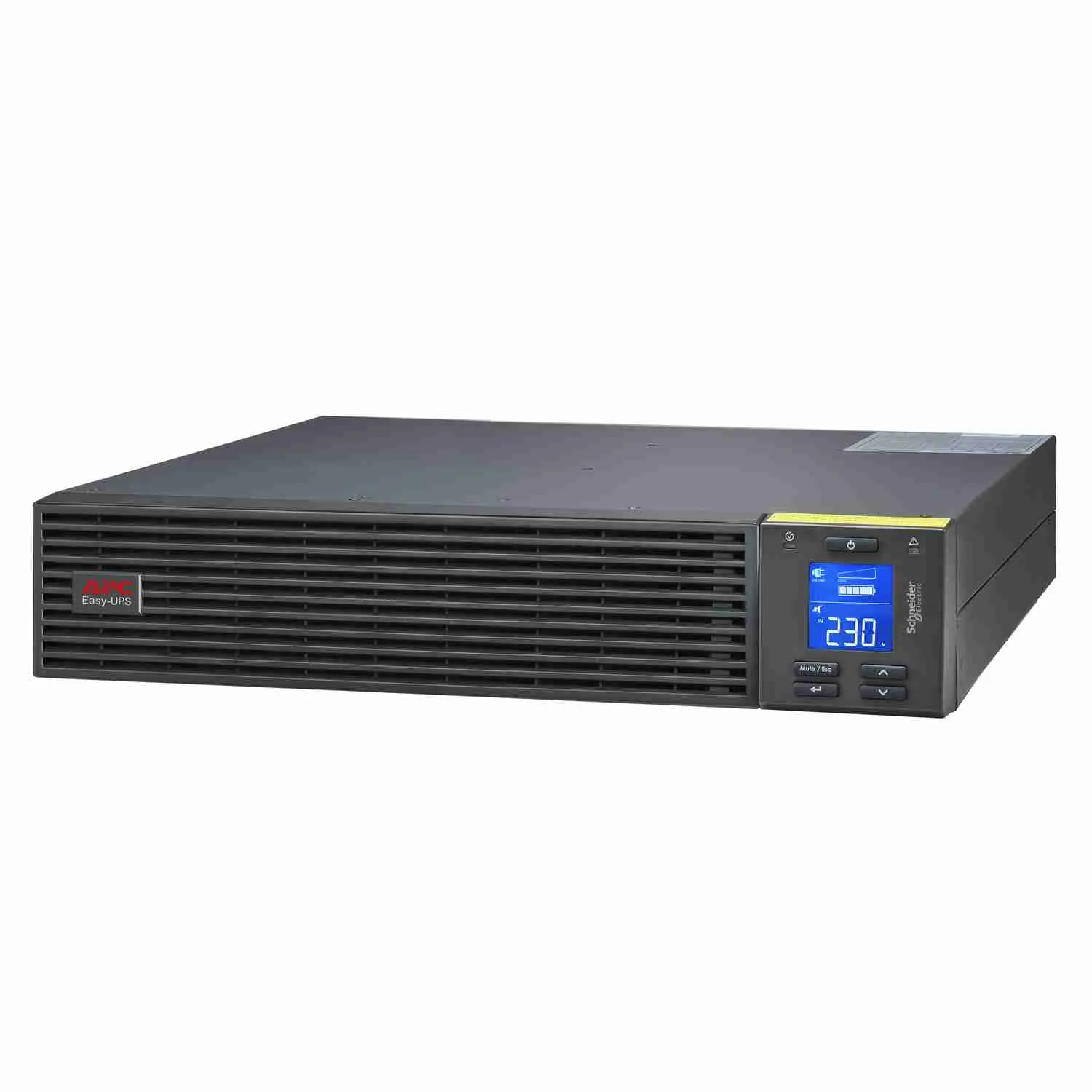

APC Easy UPS On-Line SRV 2000VA RM 230V with Rail Kit Rackmount (SRV2KRIRK)

Secure your rack-mounted infrastructure with the highest level of power protection. The APC Easy UPS Online 2000VA Rackmount delivers reliable, double-conversion online power in a 2U form factor. With 2000VA/1600W of pure sine wave output and zero transfer time, it is engineered to safeguard servers, network gear, and storage systems in small to medium businesses, ensuring operational continuity through outages and unstable grid conditions.

Product Features

True Double-Conversion Online Technology

This topology continuously regenerates clean AC power, providing complete isolation from all grid anomalies including blackouts, spikes, sags, and frequency variations, with zero transfer time to battery for maximum uptime.

Rack-Mountable 2U Design

The compact 2U form factor is built for standard 19-inch server racks. The included rail kit allows for quick and secure installation, optimizing space in your server room or network closet.

High-Capacity Pure Sine Wave Output

The 2000VA/1600W capacity supports multiple critical loads, while the utility-grade pure sine wave output ensures full compatibility with sensitive, high-efficiency servers and networking equipment.

Comprehensive Management and Monitoring

Equipped with an intuitive LCD interface and communication ports including a SmartSlot for optional management cards, this UPS enables detailed monitoring, configuration, and graceful system shutdowns via software.

Wide Input Voltage Range

Operates with a broad input voltage window (160V-280V), providing stable output and conserving battery life in areas with frequent voltage fluctuations without constantly switching to battery power.

High-Efficiency ECO Mode

An optional ECO mode increases energy efficiency by bypassing the double conversion process during periods of stable utility power, reducing electricity consumption and operational costs.

Hot-Swappable and Expandable Batteries

User-replaceable, hot-swappable batteries allow for maintenance without system downtime. The unit is also compatible with external battery packs to significantly extend runtime for longer outages.

Product Specifications

• Power Capacity: 2000VA / 1600W
• Topology: Double Conversion Online
• Form Factor: 2U Rackmount (Includes Rail Kit)
• Input Voltage Range: 160V – 280V (Full Load)
• Output Voltage: 230V (Pure Sine Wave)
• Output Connections: 6 x IEC 60320 C13
• Input Connection: IEC 60320 C14
• Communications: SmartSlot, USB, RS-232
• Display: LCD Status and Control Panel
• Battery Features: Hot-swappable, user-replaceable
• Runtime at Full Load: Approximately 4 minutes
• Dimensions (H x W x D): 8.6 cm x 43.7 cm x 46.2 cm
• Weight: 18.2 kg
• Operating Temperature: 0°C to 40°C
• Certifications: CE, RoHS
