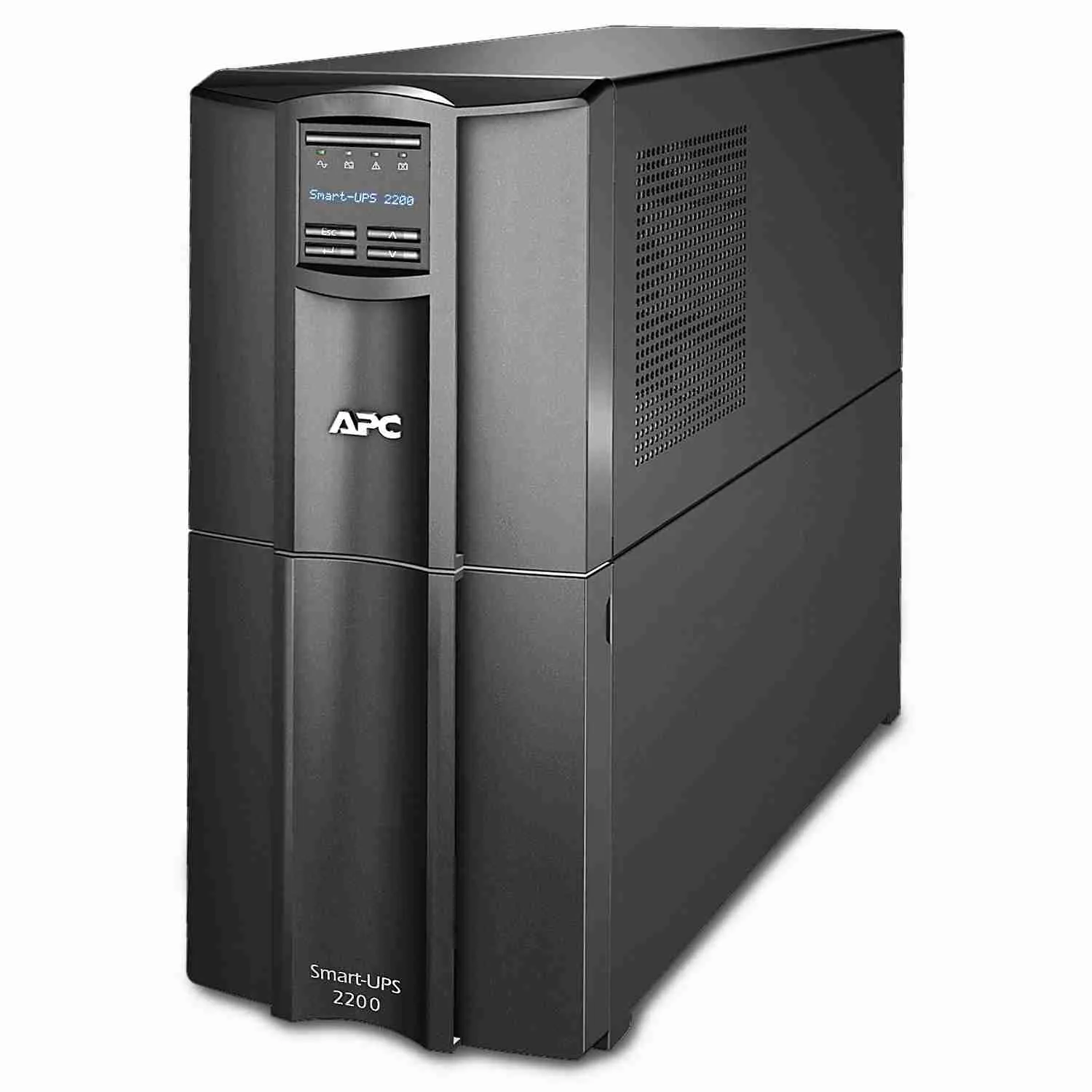

APC 2200 VA 1980 Watts Smart-UPS 2200VA LCD 230V (SMT2200IC)

Secure your business-critical infrastructure with the high-capacity APC Smart-UPS 2200VA. This professional-grade, line-interactive tower UPS delivers robust 1980W of pure sine wave power, designed to support multiple servers, network systems, and storage devices. Featuring cloud-connected SmartConnect monitoring, a comprehensive LCD interface, and wide-range Automatic Voltage Regulation (AVR), it provides enterprise-level power protection with the intelligence to ensure maximum uptime and operational continuity.

Product Features

High-Capacity Pure Sine Wave Power

With a substantial 2200VA/1980W rating, this UPS supports demanding IT loads. The pure sine wave output guarantees full compatibility with sensitive server and networking equipment, ensuring stable operation during power outages.

SmartConnect Cloud Monitoring

Enables remote, cloud-based management for real-time status alerts, diagnostics, and firmware updates. This provides proactive monitoring of your power environment without the need for a locally installed network management card.

Wide-Range Automatic Voltage Regulation (AVR)

Intelligently corrects significant voltage fluctuations (160V-286V) without switching to battery power, protecting connected equipment from damage and conserving battery life for actual power outages.

Extensive and Versatile Outlet Configuration

Equipped with eight IEC C13 outlets and one high-power IEC C19 outlet, this UPS offers flexible power distribution for a mix of standard and high-draw equipment from a single, centralized unit.

Advanced Battery Management and Serviceability

Features intelligent, temperature-compensated charging to extend battery life. The user-replaceable battery cartridge (RBC55) simplifies maintenance, ensuring reliable performance and reducing total cost of ownership.

Comprehensive System Management

The multifunction LCD provides detailed insights into system status and power metrics. USB, serial, and an optional SmartSlot port allow for integration with power management software and advanced network monitoring.

High-Efficiency Operation

Designed with energy-saving features, including a high-efficiency design that reduces power consumption and heat generation, helping to lower operational costs in always-on environments.

Product Specifications

• Power Capacity: 2200VA / 1980W
• Topology: Line Interactive
• Input Voltage: 230V (Range: 160V – 286V)
• Output Voltage: 230V (Pure Sine Wave on Battery)
• Output Connections: 8 x IEC C13, 1 x IEC C19
• Input Connection: IEC C20 (BS1363A and Schuko cables included)
• Transfer Time: 6 ms typical
• Communications: USB, Serial, SmartConnect, SmartSlot
• Display: Multifunction LCD
• Typical Recharge Time: 3 hours
• Runtime at Full Load: 8 minutes 42 seconds
• Surge Protection: 365 Joules
• Dimensions (H x W x D): 43.5 cm x 19.7 cm x 54.4 cm
• Weight: 50.2 kg
• Operating Temperature: 0°C to 40°C
